Kamerapaket 4 (Black-Series) (V2)

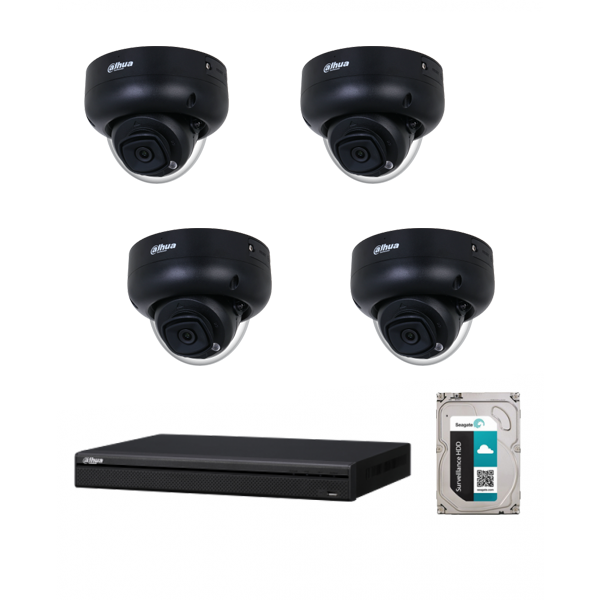

Paketet innehåller följande:

4st IPC-HDBW5541R-ASE-0280B-BLACK

1st NVR4208-8P-EI

1st HDD 2TB

OBS: Kamerafäste / junctionbox ingår inte.

Se relaterade produkter



Kemikalieskatt tillkommer:

IPC-HDBW5541R-ASE-Black

5MP IR Fixed-focal Dome WizMind Network Camera

> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960×1668) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 50 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.

> 12 VDC/PoE power supply; ePoE.

> IP67 and IK10 protection.

> SMD 3.0.

NVR4208-8P-EI

8CH 1U 8PoE 2HDDs WizSense Network Video Recorder

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
> Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
> Connected to the third-party network cameras.
> Security baseline 2.3.

HDD

Specifications	2TB1
Marketing Name	Surveillance HDD
Model Number	ST2000VX003
Seagate Recovery Services Model Number	—
Interface	SATA 6Gb/s
Cache, MB	64
Bytes per Sector	4096
Surveillance Performance
R/V (Rotational Vibration) Sensor	N
Drive Bays Supported	1 to 8
Cameras Supported	up to 32
Max Sustained Data Rate, OD Read (MB/s)	180
Voltage
Voltage Tolerance, Including Noise (5V)	±5%
Voltage Tolerance, Including Noise (12V)	±10%
Power Management
Startup Current 12V (A)	1.8
Operating Mode, Typical (W)	5.6
Idle Average (W)	4
Standby Mode (W)	0.5
Sleep Mode (W)	0.5
Environmental
Temperature     Operating (ambient, min °C)     Operating (drive case, max °C)     Nonoperating (ambient, min °C)     Nonoperating (ambient, max °C)	0 70 −40 70
Reliability
Load/Unload Cycles	300,000
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E14
Mean Time Between Failures (MTBF, hours)	1M
Power-On Hours	8760
Warranty, Limited (years)	3
Physical
Height (mm/in)	26.11/ 1.028
Width (mm/in)	101.6/4.2
Depth (mm/in)	146.99/5.789
Weight (g/lb)	610/1.347
